Air Filters
Drain fluids in the pneumatic lines may increase piping corrosion
resistance, and hinder the function of controls in the line, finally
lead to accidents.
Be sure to use air filters to remove drain fluids from the line and prevent problems.
■AF2/AF21 Standard type（Port size：Rc1/8 , Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 , Rc2 1/2 , 80A , 100A）
■AF2S/AF21S Corrosion-resistant type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 ）
■AF2P/AF21P Panel-mount type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1）
■AF2PS/AF21PS Panel-mount・Corrosion-resistant type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1）
Be sure to use air filters to remove drain fluids from the line and prevent problems.
■AF2/AF21 Standard type（Port size：Rc1/8 , Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 , Rc2 1/2 , 80A , 100A）
■AF2S/AF21S Corrosion-resistant type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 ）
■AF2P/AF21P Panel-mount type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1）
■AF2PS/AF21PS Panel-mount・Corrosion-resistant type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1）
| Model code | Standard type | AF2-02 | |
|---|---|---|---|
| Port size | 6A | 8A | |
| Rc1/8 | Rc1/4 | ||
| Effective sectional area | 7mm2（Filter rating=5μm） | ||
| Operating pressure | 0～1.0MPa | ||
| Proof pressure | 1.5MPa | ||
| Operating temperature | -20～60℃ | ||
| Mass | 0.19kg | ||
| Model code | Standard type （Corrosion-resistant type） |
AF21-04 （AF21S-04） |
AF2-08 （AF2S-08） |
AF2 （AF2S） |
AF2 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Panel-mount type （Corrosion-resistant type） |
AF21P-04 （AF21PS-04） |
AF2P-08 （AF2PS-08） |
- | |||||||||
| Port size | 8A | 10A | 15A | 20A | 25A | 32A | 40A | 50A | 65A | 80A フランジ |
100A フランジ |
|
| Rc1/4 | Rc3/8 | Rc1/2 | Rc3/4 | Rc1 | Rc1 1/4 | Rc1 1/2 | Rc2 | Rc2 1/2 | ||||
| Effective sectional area | General purpose | 40mm2 | 68mm2 | 90mm2 | 171mm2 | 190mm2 | 480mm2 | 655mm2 | 1060mm2 | 1450mm2 | 1800mm2 | 2500mm2 |
| Instrumentation | 28mm2 | 30mm2 | 40mm2 | 76mm2 | 77mm2 | 190mm2 | 190mm2 | 300mm2 | ||||
| Operating pressure | 0～1.0MPa | |||||||||||
| Proof pressure | 1.5MPa | |||||||||||
| Operating temperature | General purpose：-20～60℃ Heat-resistant：5～100℃ Freeze-resistant：-40～45℃ |
-20～60℃ | ||||||||||
| Mass | 0.58kg | 0.62kg | 0.6kg | 12.0kg | 22.0kg | 28.0kg | 39.0kg | 50.0kg | ||||
●Above values of mass exclude weight of mounting bracket.
●Refer to catalog for details.
●Effective area shown when：inlet pressure 0.5MPa pressure drop（△ P）0.05MPa
●Refer to catalog for details.
●Effective area shown when：inlet pressure 0.5MPa pressure drop（△ P）0.05MPa
Air Filters with Autodrain
An automatic drain has been fitted to the air filters.
This separates and removes drain from the pneumatic line,thus preventing trouble.
■ADF2/ADF21 Standard type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2）
■ADF2S/ADF21S Corrosion-resistant type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 ）
This separates and removes drain from the pneumatic line,thus preventing trouble.
■ADF2/ADF21 Standard type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2）
■ADF2S/ADF21S Corrosion-resistant type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 ）
| Model code | Standard type （Corrosion-resistant type） |
ADF21-04 （ADF21S-04） |
ADF2-08 （ADF2S-08） |
ADF2 （ADF2S） |
|||||
|---|---|---|---|---|---|---|---|---|---|
| Port size | 8A | 10A | 15A | 20A | 25A | 32A | 40A | 50A | |
| Rc1/4 | Rc3/8 | Rc1/2 | Rc3/4 | Rc1 | Rc1 1/4 | Rc1 1/2 | Rc2 | ||
| Effective sectional area | General purpose | 40mm2 | 68mm2 | 90mm2 | 171mm2 | 190mm2 | 480mm2 | 655mm2 | 1060mm2 |
| Instrumentation | 28mm2 | 30mm2 | 40mm2 | 76mm2 | 77mm2 | 190mm2 | 300mm2 | ||
| Operating pressure | 0～1.0MPa | ||||||||
| Proof pressure | 1.5MPa | ||||||||
| Operating temperature | -20～60℃（For use below 5℃ ,provide adequate measures against freezing.） | ||||||||
| Mass | 0.86kg | 0.9kg | 0.88kg | 14.8kg | 24.8kg | ||||
●Above values of mass exclude weight of mounting bracket.
●Refer to catalog for details.
●Refer to catalog for details.
Regulators
Regulators are used to reduce the pressure of the compressed air from the
compressor so that air is automatically fed at constant
pressure to the pneumatic line.
■RV2/RV21 Standard type（Port size：Rc1/8 , Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 , Rc2 1/2）
■RV2S/RV21S Corrosion-resistant type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 , Rc2 1/2 ）
■RV2P/RV21P Panel-mount type（Port size：Rc1/4 , Rc3/8 , Rc1/2）
■RV2PS/RV21PS Panel-mount・Corrosion-resistant type（Port size：Rc1/4 , Rc3/8 , Rc1/2）
pressure to the pneumatic line.
■RV2/RV21 Standard type（Port size：Rc1/8 , Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 , Rc2 1/2）
■RV2S/RV21S Corrosion-resistant type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 , Rc2 1/2 ）
■RV2P/RV21P Panel-mount type（Port size：Rc1/4 , Rc3/8 , Rc1/2）
■RV2PS/RV21PS Panel-mount・Corrosion-resistant type（Port size：Rc1/4 , Rc3/8 , Rc1/2）
| Model code | Standard type （Corrosion-resistant type） |
RV2-02 | RV2-03 （RV2S-03） |
RV21-04 （RV21S-04） |
RV2-08 （RV2S-08） |
RV2-14 （RV2S-14） |
RV2-20 （RV2S-20） |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Panel-mount type （Corrosion-resistant type） |
- | RV2P-03 （RV2PS-03） |
RV21P-04 （RV21PS-04） |
- | - | - | |||||||
| Port size | 6A | 8A | 8A | 10A | 10A | 15A | 20A | 25A | 32A | 40A | 50A | 65A | |
| Rc1/8 | Rc1/4 | Rc1/4 | Rc3/8 | Rc3/8 | Rc1/2 | Rc3/4 | Rc1 | Rc1 1/4 | Rc1 1/2 | Rc2 | Rc2 1/2 | ||
| Operating pressure | Primary side（IN） | Max.1.0MPa | |||||||||||
| Secondary side（OUT） | 0.05～0.7MPa | ||||||||||||
| Proof pressure | 1.5MPa（primary side only） | ||||||||||||
| Operating temperature | -20～60℃ | General purpose：-20～60℃ Heat-resistant：5～100℃ Freeze-resistant：-40～45℃ |
-20～60℃ | ||||||||||
| Mass | 0.25kg | 0.58kg | 0.84kg | 2.5kg | 5.1kg | 5.2kg | |||||||
●Above values of mass exclude weight of mounting bracket.
●Refer to catalog for details.
●Refer to catalog for details.
Precision Regulators with Check Valve
This is a precision,pilot-operated regulator,capable of a wide range of
stable pressure settings.
The built-in check valve permits secondary pressure to be fed back to the primary side if the primary pressure supply is shut off.
■RV10C Standard type（Port size：Rc1/4 , Rc3/8 , Rc1 /2 ）
The built-in check valve permits secondary pressure to be fed back to the primary side if the primary pressure supply is shut off.
■RV10C Standard type（Port size：Rc1/4 , Rc3/8 , Rc1 /2 ）
| Model code | RV10C | |||
|---|---|---|---|---|
| Port size | 8A | 10A | 15A | |
| Rc1/4 | Rc3/8 | Rc1/2 | ||
| Operating pressure | Primary side（IN） | Max.1.0MPa | ||
| Secondary side（OUT） | 0.01～0.7MPa | |||
| Sensitivity | 0.0005MPa | |||
| Operating temperature | 5～60℃ | |||
| Mass | 2.0kg | |||
●Refer to catalog for details.
High relief type Precision Regulators
The nozzle flapper high-sensitivity pilot amplification system has achieved
adjustable sensitivity of 0.001MPa.
Large relief flow enables strong resistance against excessive pressure at secondary side and prevents reverse flow.
This regulator is suitable for balancer and tension control.
■RV6 Standard type（Port size：Rc1/4 , Rc3/8 , Rc1 /2 ）
Large relief flow enables strong resistance against excessive pressure at secondary side and prevents reverse flow.
This regulator is suitable for balancer and tension control.
■RV6 Standard type（Port size：Rc1/4 , Rc3/8 , Rc1 /2 ）
| Model code | RV6-03 | RV6-04 | ||||
|---|---|---|---|---|---|---|
| Port size | 8A | 10A | 10A | 15A | ||
| Rc1/4 | Rc3/8 | Rc3/8 | Rc1/2 | |||
| Applicoble Fluid | Dry air after filter passage less than 5μm. | |||||
| Operating pressure | Primary side（IN） | Max.1.0MPa | ||||
| Secondary side （OUT） |
Generay purpose | 0.01～0.7MPa | ||||
| Middle pressure purpose | 0.01～0.4MPa | |||||
| Low pressure purpose | 0.01～0.2MPa | |||||
| Sensitivity | 0.001MPa | |||||
| Operating temperature | -20～60℃ | |||||
| Mass | 1.0kg | 1.4kg | ||||
●Do not use fluid containing oil.
●For use below 5℃ ,provide adequate measures against freezing.
●Minimal leakage may occur due to the diaphragm performance characteristics.This dose not affect the regulator function at all.
●Refer to catalog for details.
●For use below 5℃ ,provide adequate measures against freezing.
●Minimal leakage may occur due to the diaphragm performance characteristics.This dose not affect the regulator function at all.
●Refer to catalog for details.
Low pressure type Regulators
This is a regulator exclusively for use in low pressure lines.
This wide range of available pressure settings facilitates precise pressure adjustments.
■RV2-G/RV21-G Standard type（Port size：Rc1/4 , Rc3/8 , Rc1 /2 , Rc3/4 , Rc1）
This wide range of available pressure settings facilitates precise pressure adjustments.
■RV2-G/RV21-G Standard type（Port size：Rc1/4 , Rc3/8 , Rc1 /2 , Rc3/4 , Rc1）
| Model code | RV2-03-□-G4177 | RV21-04-□-G4528 | RV2-08-□-G4247 | ||||
|---|---|---|---|---|---|---|---|
| Port size | 8A | 10A | 10A | 15A | 20A | 25A | |
| Rc1/4 | Rc3/8 | RC3/8 | Rc1/2 | Rc3/4 | Rc1 | ||
| Operating pressure | Primary side（IN） | Max.1.0MPa | |||||
| Secondary side（OUT） | 0.02～0.2MPa | ||||||
| Proof pressure | 1.5MPa | ||||||
| Operating temperature | General purpose：-20～60℃ Heat-resistant：5～100℃ Freeze-resistant：-40～45℃ | ||||||
| Mass | 0.58kg | 0.84kg | 2.5kg | ||||
●Refer to catalog for details.
Nozzle flapper type Low pressure Regulators
The nozzle flapper high-sensitivity pilot amplification system has achieved
adjustable 0 to 0.04 MPa control.
Outside dimensions are same as standard model of RV6-03.
■RV6-G Standard type（Port size：Rc1/4 , Rc3/8）
Outside dimensions are same as standard model of RV6-03.
■RV6-G Standard type（Port size：Rc1/4 , Rc3/8）
| Model code | RV6-03-□-G | ||
|---|---|---|---|
| Port size | 8A | 10A | |
| Rc1/4 | Rc3/8 | ||
| Applicoble Fluid | Dry air after filter passage less than 5μm. | ||
| Operating pressure | Primary side（IN） | Max.0.7MPa | |
| Secondary side（OUT） | 0～40kPa | ||
| Sensitivity | 0.001MPa | ||
| Operating temperature | -20～60℃ | ||
| Mass | 1.0kg | ||
●Do not use fluid containing oil.
●For use below 5℃ ,provide adequate measures against freezing.
●Minimal leakage may occur due to the diaphragm performance characteristics.This dose not affect the regulator function at all.
●Refer to catalog for details.
●For use below 5℃ ,provide adequate measures against freezing.
●Minimal leakage may occur due to the diaphragm performance characteristics.This dose not affect the regulator function at all.
●Refer to catalog for details.
Volume Boosters
Volume booster maintains pressure supply to air tanks and actuators,and
provides great performance where rapid pressure relief is required.
It can be operated remotely using a pilot-operated regulator at a nearby,convenient point.
■VB3 Standard type（Port size：Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc2）
■VB3S Corrosion-resistant type（Port size：Rc3/8 , Rc1/2 , Rc3/4 , Rc1）
It can be operated remotely using a pilot-operated regulator at a nearby,convenient point.
■VB3 Standard type（Port size：Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc2）
■VB3S Corrosion-resistant type（Port size：Rc3/8 , Rc1/2 , Rc3/4 , Rc1）
| Model code | Standard type （Corrosion-resistant type） |
VB3-04 （VB3S-04） |
VB3-08 （VB3S-08） |
VB3-20 | ||
|---|---|---|---|---|---|---|
| Port size | 10A | 15A | 20A | 25A | 50A | |
| Rc3/8 | Rc1/2 | Rc3/4 | Rc1 | Rc2 | ||
| Applicoble Fluid | Dry air after filter passage less than 40μm | |||||
| Operating pressure | Primary side（IN） | Max.1.0MPa | ||||
| Signal pressure | 0.02～0.7MPa | 0.05〜0.8MPa | ||||
| Secondary side（OUT） | 0.02～0.7MPa | 0.05〜0.8MPa | ||||
| Pressure raito | Signal pressure ：Secondary side = 1：1 | |||||
| Accuracy | Less than ± 0.014MPa（Less than2％ FS） | |||||
| Operating temperature | -20～60℃ | |||||
| Mass | 1.2kg | 3.5kg | 9.2kg | |||
●For use below 5℃ ,provide adequate measures against freezing.
●Make sure that the primary pressure is at least 0.1MPa higher than the secondary pressure.
●Refer to catalog for details.
●Make sure that the primary pressure is at least 0.1MPa higher than the secondary pressure.
●Refer to catalog for details.
Precision type Volume Boosters
VB7 series precision type volume booster provides excellent performance
supported by superior flow rate,accuracy,amplification factor,
response and relief characteristics.
■VB7 Precision type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1）
response and relief characteristics.
■VB7 Precision type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1）
| Model code | Precision type | VB7-03 | VB7-04 | VB7-08 | |||
|---|---|---|---|---|---|---|---|
| Port size | 8A | 10A | 10A | 15A | 20A | 25A | |
| Rc1/4 | Rc3/8 | Rc3/8 | Rc1/2 | Rc3/4 | Rc1 | ||
| Applicoble Fluid | Dry air after filter passage less than 40μm | ||||||
| Operating pressure | Primary side（IN） | 0.1～1.0MPa | |||||
| Signal pressure | 0.01～0.7MPa | ||||||
| Secondary side（OUT） | 0.01～0.7MPa | ||||||
| Pressure raito | Signal pressure ：Secondary side = 1：1 | ||||||
| Accuracy | Less than ± 0.007MPa（Less than 1％ FS 以下） | ||||||
| Operating temperature | -20～60℃ | ||||||
| Mass | 0.6kg | 1.0kg | 2.5kg | ||||
●For use below 5℃ ,provide adequate measures against freezing.
●Make sure to produce at least 0.1MPa of pressure difference between primary and secondary sides of the pressure port,or appropriate flow rate cannot be achieved.
● Minimal leakage may occur due to the diaphragm performance characteristics.This does not have any problem to the function.
●Refer to catalog for details.
●Make sure to produce at least 0.1MPa of pressure difference between primary and secondary sides of the pressure port,or appropriate flow rate cannot be achieved.
● Minimal leakage may occur due to the diaphragm performance characteristics.This does not have any problem to the function.
●Refer to catalog for details.
Regulators with External Pilot
Pressure is controlled by external signal pressure（pilot pressure）instead of
by spring force.
Performance,etc.is exactly the same as the springcontrolled regulators
■PRV11B/PRV2-14 Standard type（Port size：Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 ）
Performance,etc.is exactly the same as the springcontrolled regulators
■PRV11B/PRV2-14 Standard type（Port size：Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 ）
| Model code | PRV11B | PRV2-14 | |||
|---|---|---|---|---|---|
| Port size | 20A | 25A | 32A | 40A | |
| Rc3/4 | Rc1 | Rc1 1/4 | Rc1 1/2 | ||
| Operating pressure | Primary side（IN） | Max. 1.0MPa | |||
| Secondary side（OUT） | 0.05～0.7MPa | ||||
| Proof pressure | 1.5MPa（primary side only） | ||||
| Operating temperature | -20～60℃ | ||||
| Mass | 2.5kg | 5.1kg | |||
●Refer to catalog for details.
Electric Regulators
In this electric regulator,the rotating force of the motor is connected to a
pushing force,allowing pressure control.
It is suitable for pressure control in sonfined places or from remote points.
■380-3075/380-3075L Standard type（Port size：Rc1/4 , Rc3/8）
It is suitable for pressure control in sonfined places or from remote points.
■380-3075/380-3075L Standard type（Port size：Rc1/4 , Rc3/8）
| Model code | 380-3075 | 380-3075L | |||
|---|---|---|---|---|---|
| Port size | 8A | 10A | 8A | 10A | |
| Rc1/4 | Rc3/8 | Rc1/4 | Rc3/8 | ||
| Operating pressure | Primary side（IN） | Max.0.98MPa | |||
| Secondary side（OUT） | 0.05～0.5MPa | 0.02～0.3MPa | |||
| Proof pressure | 1.5MPa | ||||
| Pressure setting speed | about 5s/0.1MPa | ||||
| Bleed from relief valve | 1L/min（ANR）or less | ||||
| Operating temperature | -10～50℃（For use below 5℃ ,provide adequate measures against freezing.） | ||||
| Motor | Voltage | AC100V（50/60Hz） ・ AC110V（50/60Hz） ・ AC115V（50/60Hz） | |||
| Current | 0.15A ・ 0.12A ・ 0.12A | ||||
| Output | 2W | ||||

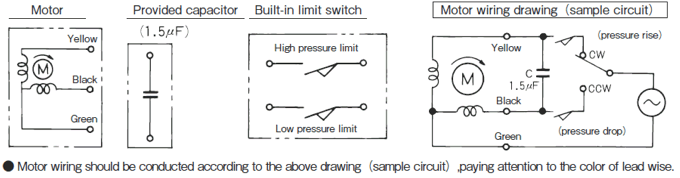

| Wiring diagram |
 |
||||
●Refer to catalog for details.
Lubricators
The lubricator is intended for mist-lubrication of controls and peripheral
equipment in pneumatic lines,as required,by automatically sending
oil in mist from to the pneumatic line.
This extends the services life of the components in the pneumatic line and improves their efficiency.
■OL2/OL21 Standard type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 , Rc2 1/2）
■OL2S/OL21S Corrosion-resistant type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 , Rc2 1/2 ）
oil in mist from to the pneumatic line.
This extends the services life of the components in the pneumatic line and improves their efficiency.
■OL2/OL21 Standard type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 , Rc2 1/2）
■OL2S/OL21S Corrosion-resistant type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 , Rc2 1/2 ）
| Model code | Standard type （Corrosion-resistant type） |
OL21-04 （OL21S-04） |
OL2-08 （OL2S-08） |
OL2-14 （OL2S-14） |
OL2-20 （OL2S-20） |
|||||
|---|---|---|---|---|---|---|---|---|---|---|
| Port size | 8A | 10A | 15A | 20A | 25A | 32A | 40A | 50A | 65A | |
| Rc1/4 | Rc3/8 | Rc1/2 | Rc3/4 | Rc1 | Rc1 1/4 | Rc1 1/2 | Rc2 | Rc2 1/2 | ||
| Bowl oil capacity | 200cm3 | 250cm3 | 1500cm3 | 1500cm3 | ||||||
| Operating pressure | 0.05～0.7MPa | |||||||||
| Proof pressure | 1.05MPa | |||||||||
| Spray condition | IN-to-OUT pressure differential to be 0.003MPa or more | |||||||||
| Operating temperature | General purpose：5～60℃ Heat-resistant：5～100℃ | |||||||||
| Mass | 0.64kg | 0.7kg | 7.0kg | 7.1kg | ||||||
●Refer to catalog for details.
Forced spray Micromist Lubricators
This is a large capacity lubricator being the most suitable for a
centralized lubricating system with many moving parts like air motors
and gear chain etc.,requiring a large amount of lublicant.
■MO2 Standard type（Port size：Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2）
and gear chain etc.,requiring a large amount of lublicant.
■MO2 Standard type（Port size：Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2）
| Model code | MO2-10 | MO2-14 | MO2-20 | |
|---|---|---|---|---|
| Port size | 25A | 32A | 40A | 50A |
| Rc1 | Rc1 1/4 | Rc1 1/2 | Rc2 | |
| Effective sectional area | 260mm2 | 500mm2 | 700mm2 | 1200mm2 |
| Operating pressure | 0.05～0.7MPa | |||
| Proof pressure | 1.05MPa | |||
| Operating temperature | 5～60℃ | |||
| Bowl oil capacity | 12000cm3 | |||
| Mass | 55kg | |||
●Refer to catalog for details.
Reducing valve with filter
The FR unit is a compound line component into which an air filter and a
regulator are integrated.
■ARU2/ARU3A/FR21 Standard type（Port size：Rc1/8 , Rc1/4 , Rc3/8 , Rc1/2）
■ARU3A/FR21S Corrosion-resistant type（Port size：Rc1/4 , Rc3/8 , Rc1/2 ）
■FR21P Panel-mount type（Port size：Rc3/8 , Rc1/2）
■FR21PS Panel-mount・Corrosion-resistant type（Port size：Rc3/8 , Rc1/2）
■FR5 Instrumentation（Port size：Rc1/4 , Rc3/8 ） ■FR5S Instrumentation・Corrosion-resistant type（Port size：Rc1/4 , Rc3/8 ）
■ARU2/ARU3A/FR21 Standard type（Port size：Rc1/8 , Rc1/4 , Rc3/8 , Rc1/2）
■ARU3A/FR21S Corrosion-resistant type（Port size：Rc1/4 , Rc3/8 , Rc1/2 ）
■FR21P Panel-mount type（Port size：Rc3/8 , Rc1/2）
■FR21PS Panel-mount・Corrosion-resistant type（Port size：Rc3/8 , Rc1/2）
■FR5 Instrumentation（Port size：Rc1/4 , Rc3/8 ） ■FR5S Instrumentation・Corrosion-resistant type（Port size：Rc1/4 , Rc3/8 ）
| Model code | Standard type （Corrosion-resistant type） |
ARU2-02 | - | ARU3A-03 （ARU3AS-03） |
FR21-04 （FR21S-04） |
||||
|---|---|---|---|---|---|---|---|---|---|
| Panel-mount type （Corrosion-resistant type） |
- | - | - | FR21P-04 （FR21PS-04） |
|||||
| Instrumentation （Corrosion-resistant type） |
- | FR5-02 （FR5S-02） |
- | - | |||||
| Port size | 6A | 8A | 8A | 10A | 8A | 10A | 10A | 15A | |
| Rc1/8 | Rc1/4 | Rc1/4 | Rc3/8 | Rc1/4 | Rc3/8 | Rc3/8 | Rc1/2 | ||
| Operating pressure | Primary side（IN） | Max.1.0MPa | |||||||
| Secondary side（OUT） | 0.05～0.7MPa | 0.02～0.2MPa | 0.05～0.7MPa | ||||||
| Proof pressure | 1.5MPa | ||||||||
| Operating temperature | -20～60℃ | General purpose：-20～60℃ Heat-resistant：5～100℃ |
General purpose：-20～60℃ Heat-resistant：5～100℃ Freeze-resistant：-40～45℃ |
||||||
| Filter rating of element | 5μm | 5μm | 5μm , 40μm | ||||||
| Mass | 0.26kg | 1kg | 0.7kg | 0.88kg | |||||
●Above values of mass exclude weight of mounting bracket.
●Refer to catalog for details.
●Refer to catalog for details.
FR Units
Compatible with a lubrication-oil-free pneumatic line and three-piece set of
air units without lubricator will be offered.
■820-4395/-4397/-3184/-3186/-3188 Standard type（Port size：Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 , Rc2 1/2）
■820-4396/-4398/-3185/-3187/-3189 Corrosion-resistant type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 , Rc2 1/2 ）
■820-4395/-4397/-3184/-3186/-3188 Standard type（Port size：Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 , Rc2 1/2）
■820-4396/-4398/-3185/-3187/-3189 Corrosion-resistant type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 , Rc2 1/2 ）
| Model code | Standard type （Corrosion-resistant type） |
820-4395 （820-4396） |
820-4397 （820-4398） |
820-3184 （820-3185） |
820-3186 （820-3187） |
820-3188 （820-3189） |
|||
|---|---|---|---|---|---|---|---|---|---|
| Port size | 10A | 15A | 20A | 25A | 32A | 40A | 50A | 65A | |
| Rc3/8 | Rc1/2 | Rc3/4 | Rc1 | Rc1 1/4 | Rc1 1/2 | Rc2 | Rc2 1/2 | ||
| Operating pressure | Primary side（IN） | Max. 1.0MPa | |||||||
| Secondary side（OUT） | 0.05～0.7MPa | ||||||||
| Proof pressure | Primary pressure：1.5MPa /Secondary pressure：0.7MPa | ||||||||
| Operating temperature | General purpose：5～60℃ Heat-resistant：5～100℃ | 5～60℃ | |||||||
| Components | Air filter | AF21-04（AF21S-04※） | AF2-08（AF2S-08※） | AF2（AF2S※） | AF2（AF2S※） | ||||
| Regulator | RV21-04（RV21S-04※） | RV2-08（RV2S-08※） | RV2-14（RV2S-14※） | RV2-20（RV2S-20※） | |||||
| Pressure gauge | Standard type：50mm dia（Scale：0 to 1MPa） Corrosion-resistant type：50mm dia（Scale：0 to 1MPa）Corrosion-resistant type |
||||||||
●Air filter rating is 40 microns for all models.
●※mark：Corrosion-resistant surface type
●Refer to catalog for details.
●※mark：Corrosion-resistant surface type
●Refer to catalog for details.
FRL Units
This is a three-part air unit comprised of filter,regulator and lubricator
that ensures stable operation of peripherals such as cylinders and
piston valves in pneumatic lines.
■LU2/LU21 Standard type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 , Rc2 1/2）
■LU2S/LU21S Corrosion-resistant type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 , Rc2 1/2 ）
piston valves in pneumatic lines.
■LU2/LU21 Standard type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 , Rc2 1/2）
■LU2S/LU21S Corrosion-resistant type（Port size：Rc1/4 , Rc3/8 , Rc1/2 , Rc3/4 , Rc1 , Rc1 1/4 , Rc1 1/2 , Rc2 , Rc2 1/2 ）
| Model code | Standard type （Corrosion-resistant type） |
LU21-04 （LU21S-04） |
LU2-08 （LU2S-08） |
LU2-14 （LU2S-14） |
LU2-20 （LU2S-20） |
|||||
|---|---|---|---|---|---|---|---|---|---|---|
| Port size | 8A | 10A | 15A | 20A | 25A | 32A | 40A | 50A | 65A | |
| Rc1/4 | Rc3/8 | Rc1/2 | Rc3/4 | Rc1 | Rc1 1/4 | Rc1 1/2 | Rc2 | Rc2 1/2 | ||
| Operating pressure | Primary side（IN） | Max. 1.0MPa | ||||||||
| Secondary side（OUT） | 0.05～0.7MPa | |||||||||
| Proof pressure | Primary pressure：1.5MPa /Secondary pressure：0.7MPa | |||||||||
| Operating temperature | General purpose：5～60℃ Heat-resistant：5～100℃ | 5～60℃ | ||||||||
| Components | Air filter | AF21-04（AF21S-04※） | AF2-08（AF2S-08※） | AF2（AF2S※） | AF2（AF2S※） | |||||
| Regulator | RV21-04（RV21S-04※） | RV2-08（RV2S-08※） | RV2-14（RV2S-14※） | RV2-20（RV2S-20※） | ||||||
| Lubricator | OL21-04（OL21S-04※） | OL2-08（OL2S-08※） | OL2-14（OL2S-14※） | OL2-20（OL2S-20※） | ||||||
| Pressure gauge | Standard type：50mm dia（Scale：0 to 1MPa） Corrosion-resistant type：50mm dia（Scale：0 to 1MPa）Corrosion-resistant type |
|||||||||
| Mass | 2.1kg | 4.0kg | 28kg | 45kg | ||||||
●Above values of mass exclude weight of mounting bracket.
●Air filter rating is 40 microns for all models.
●※mark：Corrosion-resistant surface type
●Refer to catalog for details.
●Air filter rating is 40 microns for all models.
●※mark：Corrosion-resistant surface type
●Refer to catalog for details.
Float type Auto Drain
A float-type Auto Drain“ E1500” with high sensitivity which responses to drain quickly even at low pressure.
| Model code | E1500B | E1500D |
|---|---|---|
| Port size | Rc1/4 | Rc1/2 |
| Working pressure | 0.25〜1MPa | |
| Ambient temp | 5〜60℃ | |
| Mass | 0.5kg | |
| Mounting style | Vertical mounting with the drain portfacing ownward (Tilt angle: Within ± 10°) | |
●Refer to catalog for details.
