TA3 SERIES(φ50~φ125)Pneumatic rotary actuator

TA3 SERIES Pneumatic rotary actuator
Pneumatic rotary actuator suitable for automatic open/close operation of ball valves and butterfly valves.
■Extensive options
 Many models with various options are now available as standard. They meet versatile requirements for total system establishment.
 1.Electro-pneumatic Positioner
 2.Switch box
 3.NAMUR-compliant 5-port Solenoid Valves(Incorporating bypass valve)
 4.NAMUR-compliant compact Size Explosion-proof Solenoid valve(Incorporating bypass valve)
 5.FR Unit(Regulator with Filter)
 6.Bypass Valve Incorporating Speed Controller
■Complying with NAMUR standards
 Solenoid valves mouting interface and optional actuator top mounting interface comply with NAMUR standards (VDI/VDE3845)

TA3 SERIES(φ50~φ125)Pneumatic rotary actuator

  • TA3 SERIES Pneumatic rotary actuator
・Valve mounting interface:ISO5211 compliant.
・Solenoid valves mouting interface and optional actuator top mounting interface comply with NAMUR standards (VDI/VDE3845)
・Scotch yoke/double piston mechanism is adopted for compact design.
・Scotch yoke mechanism features improved driving efficiency allowing compact design, while providing optimum torque
 characteristics for controlling valves hich require maximum torque output at the start/stop ends of rotation.
・TA3 series and its options can be operated without lubrication.
・Single-acting(spring return)type incorporates spring cartridge.
Bore size(mm) φ50 φ63 φ80 φ100 φ125
Operating fluid Compressed air
Operating pressure Double-Acting Type:0.3~0.7MPa
Single-Acting Type:0.3~0.7MPa
Proof pressure 1.05MPa
Ambient temperature -5~60℃(For use below 5℃ ,provide adequate measures against freezing.)
Operating frequency Double-Acting Type max. 30cycle/min max. 15cycle/min max. 10cycle/min
Operating speed max. 90°/ s max. 90°/ 2s max. 90°/ 3s
Operating frequency Single-Acting Type max. 30cycle/min max. 12cycle/min max. 7.5cycle/min
Operating speed max. 90°/ s max. 90°/ 2.5s max. 90°/ 4s
Standard rotation angle 90°
Bodycollar Silver
Output Torque

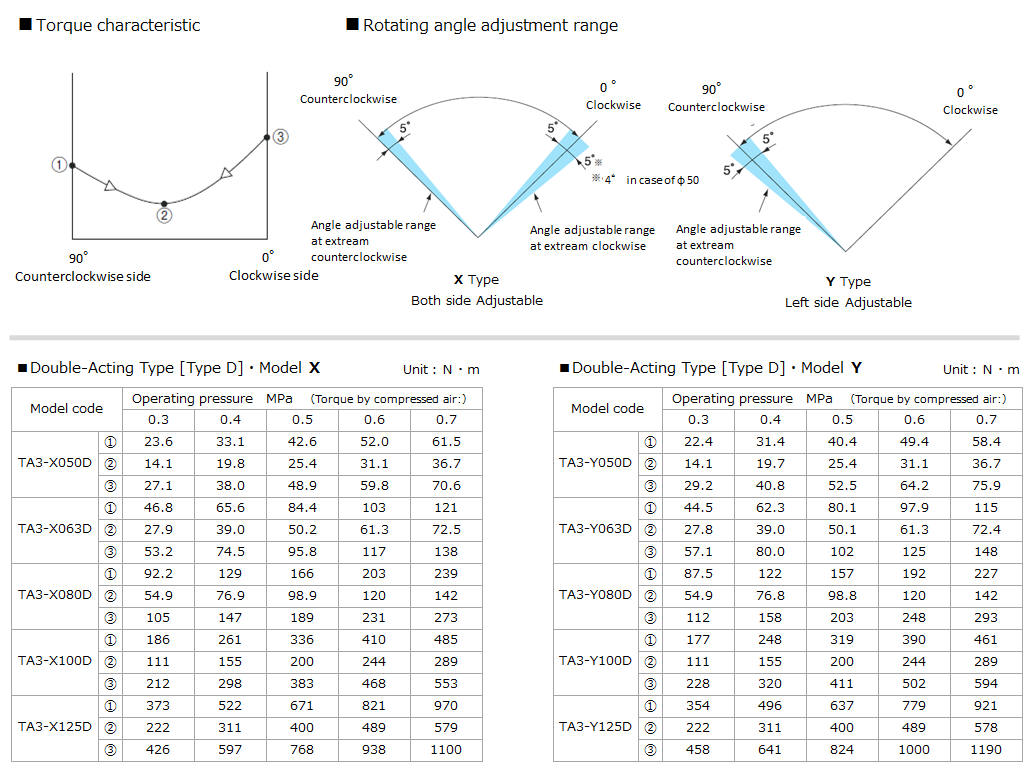

・Double-Acting Type
・Torque characteristic
Double-Acting Type Output Torque
Output Torque

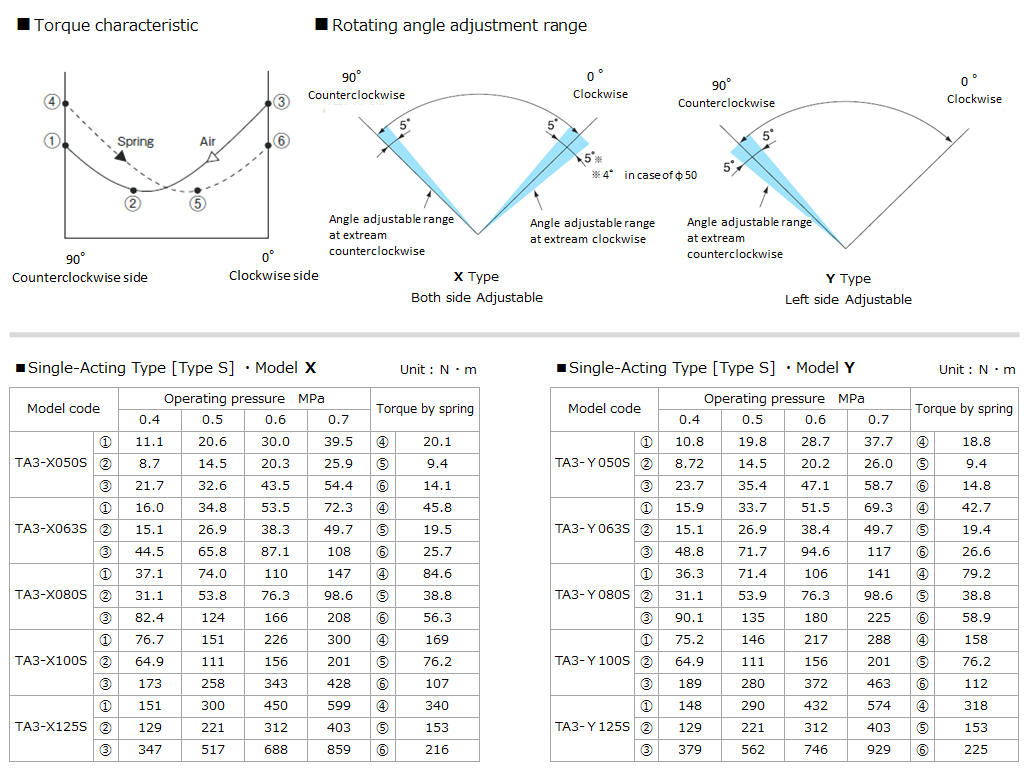

・Single-Acting Type
・Torque characteristic

Single-Acting Type  Output Torque
●Refer to catalog for details.
